hibox-montage
Schritt-für-Schritt-Anleitung zur Montage einer
Hibox-Schalteinheit:
Schritt-für-Schritt-Anleitung zur Montage einer
Hibox-Schalteinheit

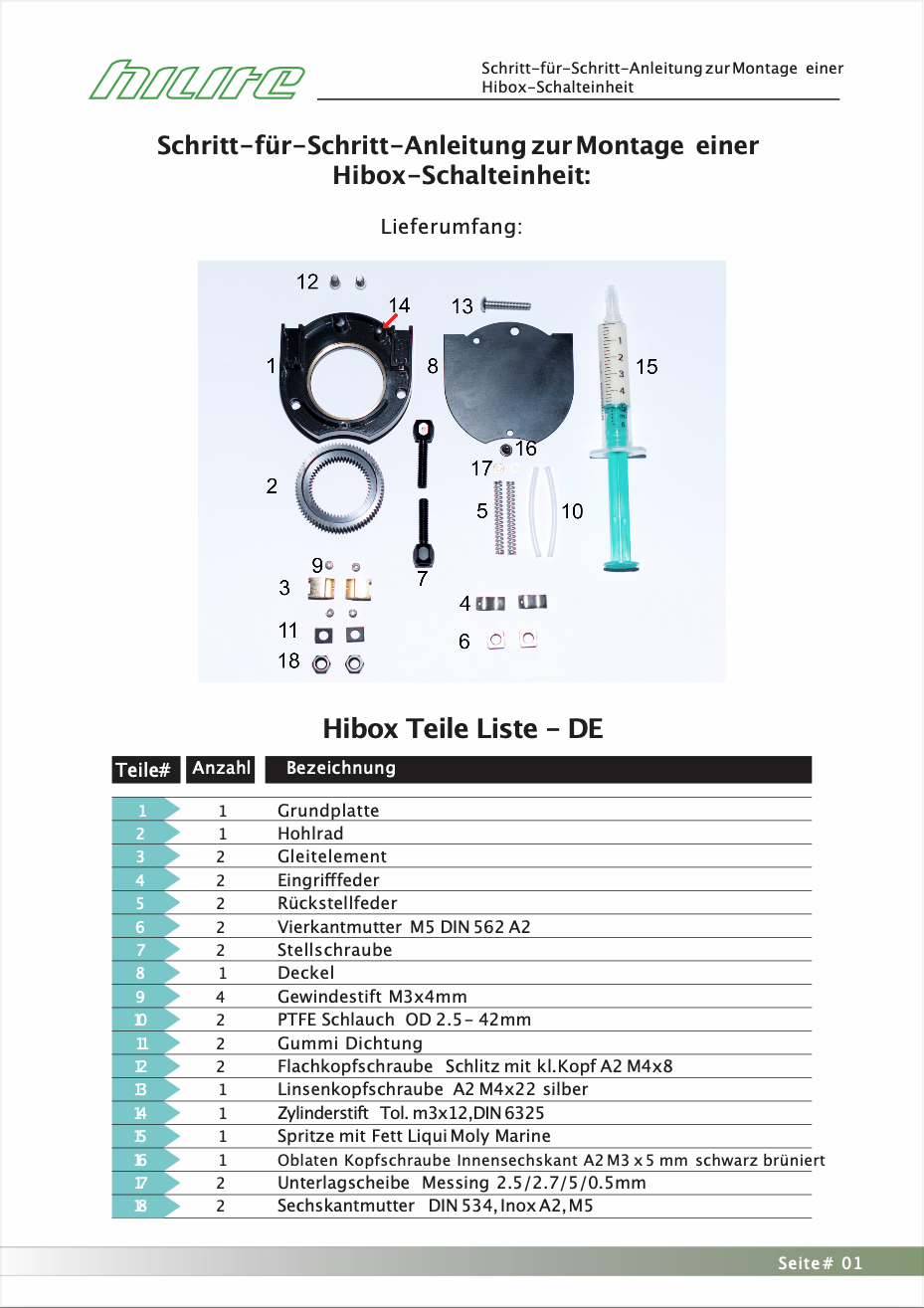

Hibox Teile Liste - DE
Lieferumfang:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
1
2
2
2
2
2
1
4
2
2
2
1
1
1
1
2
2
Teile# Anzahl Bezeichnung
Seite # 01
Grundplatte
Hohlrad
Gleitelement
Eingrifffeder
Rückstellfeder
Vierkantmutter M5 DIN 562 A2
Stellschraube
Deckel
Gewindestift M3x4mm
PTFE Schlauch OD 2.5 - 42mm
Gummi Dichtung
Flachkopfschraube Schlitz mit kl. Kopf A2 M4x8
Linsenkopfschraube A2 M4x22 silber
Zylinderstift Tol. m3x12, DIN 6325
Spritze mit Fett Liqui Moly Marine
Oblaten Kopfschraube Innensechskant A2 M3 x 5 mm schwarz brüniert
Unterlagscheibe Messing 2.5/2.7/5/0.5mm
Sechskantmutter DIN 534, Inox A2, M5
Step-by-step assembly instructions for Hibox Gearbox:
Included Items
!"#$%&'()*+&,"+*
!"#$"%
&'()*$
+"("#,*'-'.
1
1
Base plate
2
1
Sun Gear
3
2
Glide Element
4
2
Engagement spring
5
2
Spring
6
2
Square nut M5 DIN 562 A2
7
2
Adjustment screw
8
1
Cover
9
4
Gewindestift M3x4mm
10
2
Teflon tube OD 2.5 - 42mm
11
2
Gasket
12
2
Flathead slotted screw w. small headA2 M4x8
13
1
Countersunk screw A2 M4x22 silber
14
1
Cylindrical pin Tol. m3x12, DIN 6325
15
1
Syringe w. Grease Liqui Moly Marine
16
1
Countersunk hex socket screw A2 M3 x 5 mm burnished black
17
2
Brass washer 2.5/2.7/5/0.5mm
18
2
Hex nut DIN 534, Inox A2, M5
Required Tools
- 2 mm and 2.5 mm Hex key
- 0.5 x 3 mm Flathead screwdriver
- Knipex 70/110 side cutters
Important note: Assembly recommended by professionals
By this statement, it is clarified that the installation of the Hibox is best performed by
professionals with the appropriate expertise and experience to ensure that the installation is
done correctly and potential risks or errors are avoided.
b.c. bicycle parts and production GmbH accepts no liability for damages in cases where the
control unit was not installed properly.
Schritt-für-Schritt-Anleitung zur Montage einer
Hibox-Schalteinheit

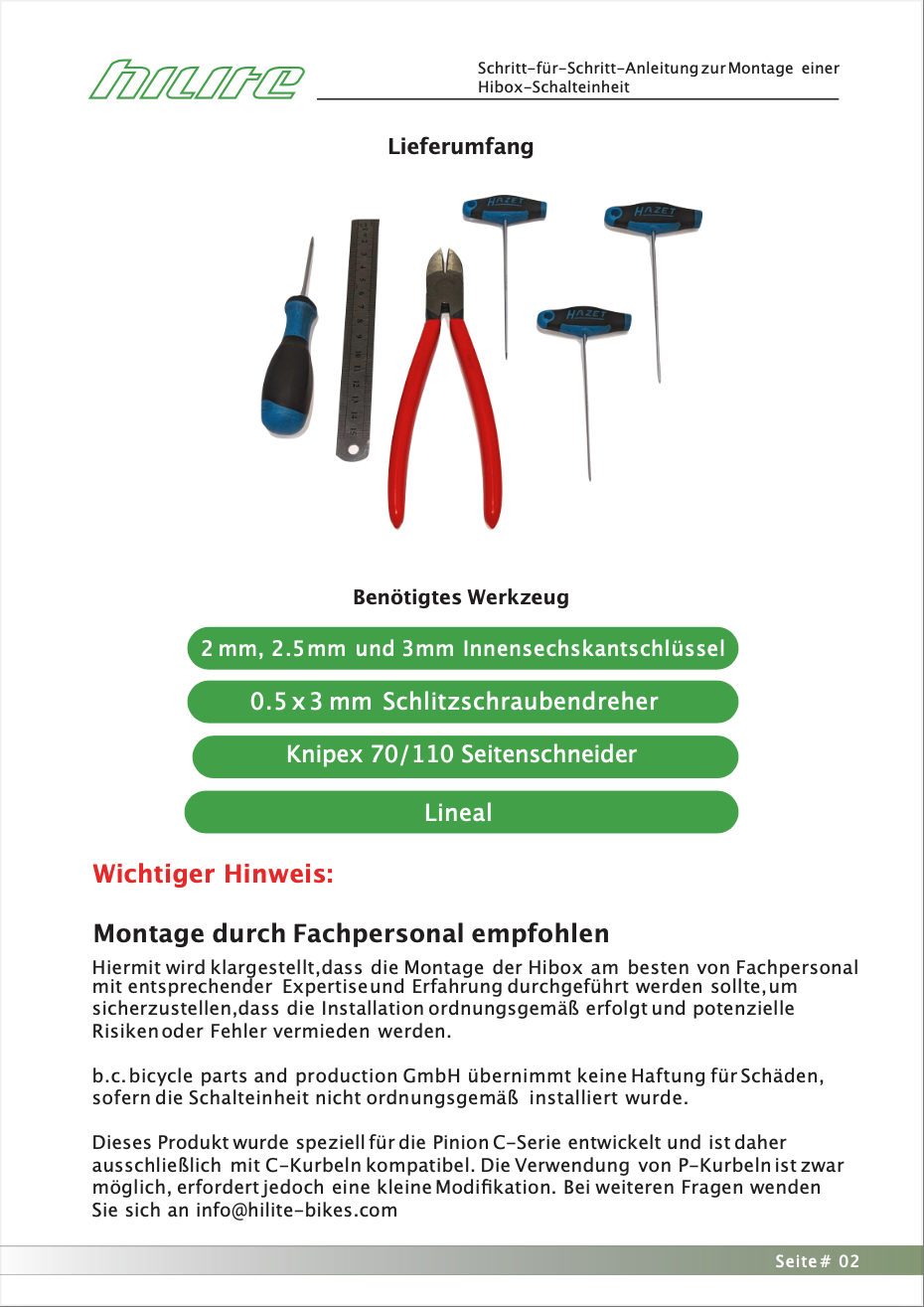

Benötigtes Werkzeug
Seite # 02
2 mm und 2.5 mm Innensechskantschlüsse
0.5 x 3 mm Schlitzschraubendreher
Knipex 70/110 Seitenschneider
Wichtiger Hinweis:
Montage durch Fachpersonal empfohlen
Hiermit wird klargestellt, dass die Montage der Hibox am besten von Fachperso al
mit entsprechender Expertise und Erfahrung durchgeführt werden sollte, um
sicherzustellen, dass die Installation ordnungsgemäß erfolgt und potenzielle
Risiken oder Fehler vermieden werden.
b.c. bicycle parts and production GmbH übernimmt keine Haftung für Schäden,
sofern die Schalteinheit nicht ordnungsgemäß installiert wurde
Required Tools
- 2 mm and 2.5 mm Hex key
- 0.5 x 3 mm Flathead screwdriver
- Knipex 70/110 side cutters
Important note: Assembly recommended by professionals
By this statement, it is clarified that the installation of the Hibox is best performed by
professionals with the appropriate expertise and experience to ensure that the installation is
done correctly and potential risks or errors are avoided.
b.c. bicycle parts and production GmbH accepts no liability for damages in cases where the
control unit was not installed properly.

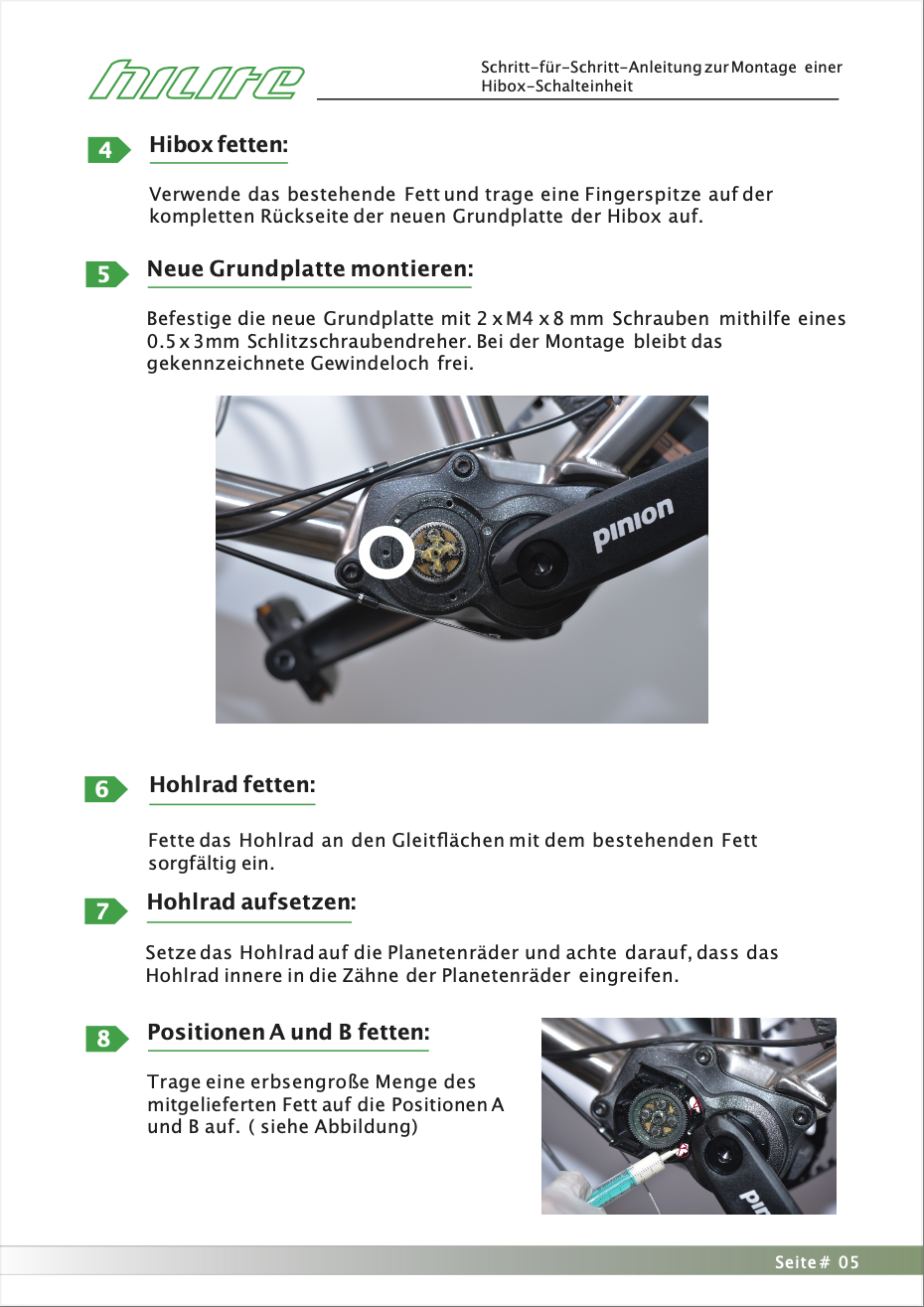

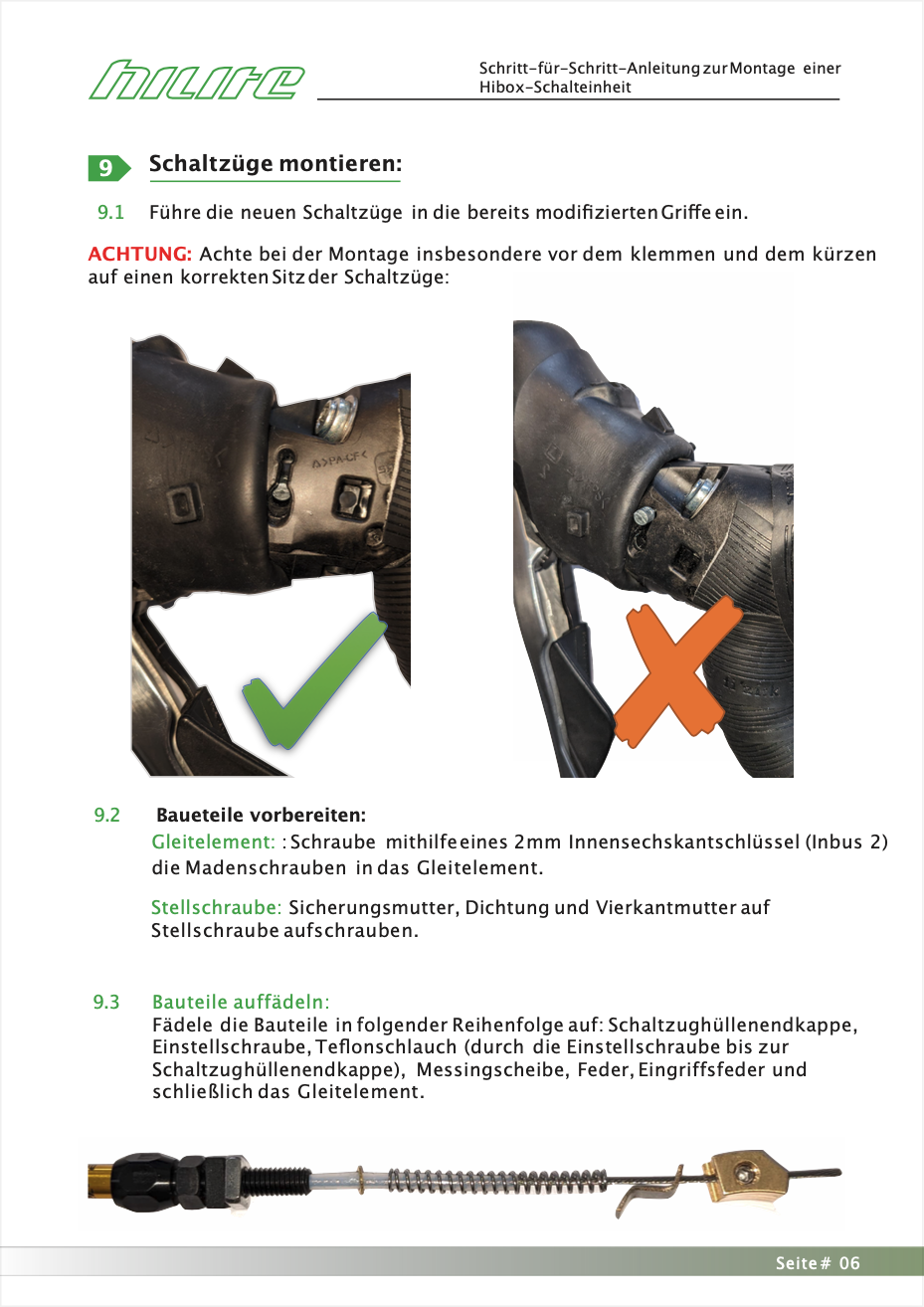

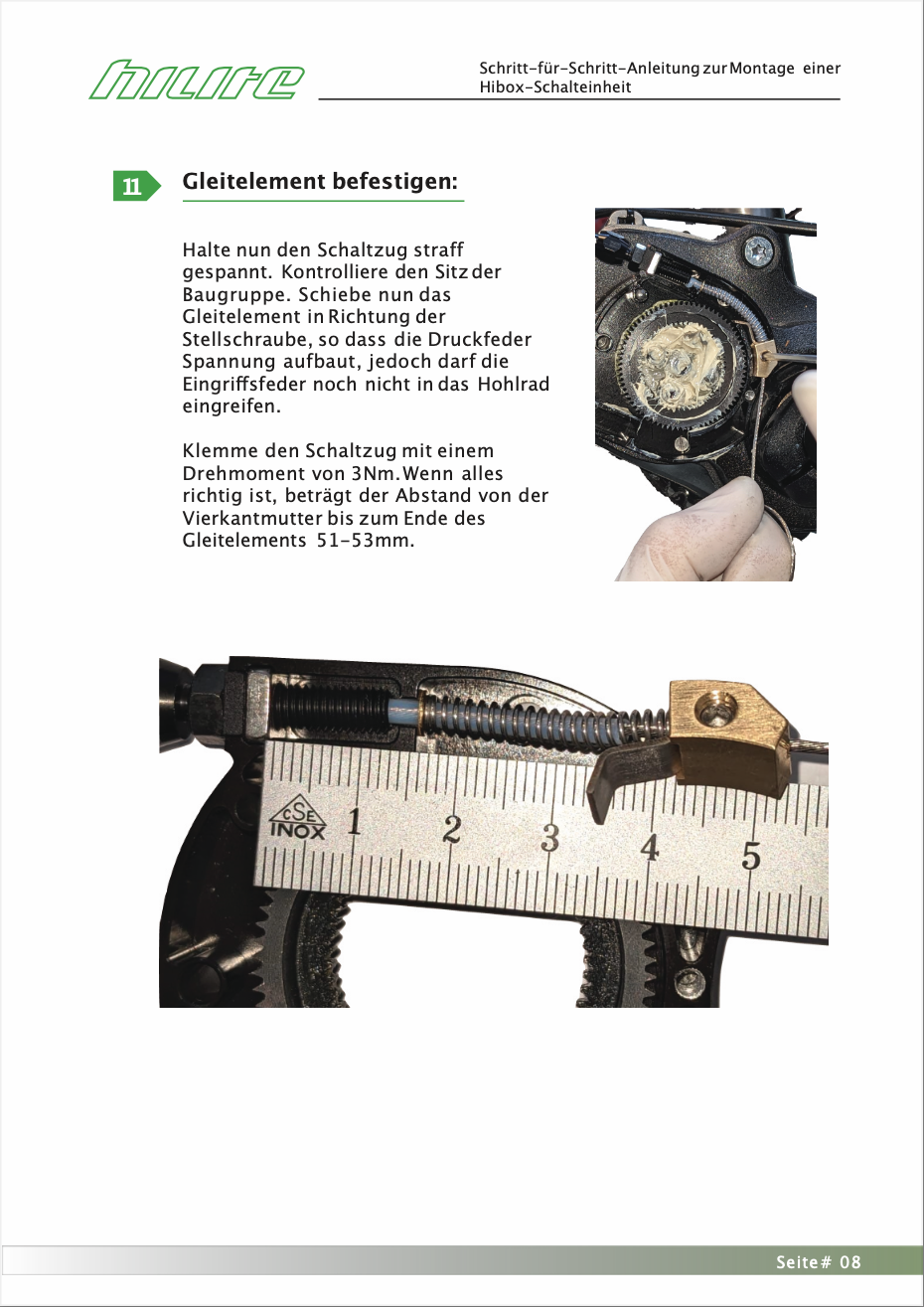

1. Lever open the lid: Use a screwdriver to gently pry open the lid. Be careful not to
cause any damage.
1. Lever open the lid: Use a screwdriver to gently pry open the lid. Be careful not to
cause any damage.
